PC Strand

7-wire prestressed concrete strand used in fields such as bridge beam, reinforced concrete prefabricated building elements, silo manufacturing and ground anchoring applications can be produced in accordance with ASTM, EN, BS and other national standards.


The prestressed concrete strand with low relaxation properties is appropriately taged for identification and traceability and is packaged and ready for shipment according to customer demands.

Low relaxation propertie of PC Strand provived by relieving the stresses of high carbon, chromium and vanadium alloyed wire rods after cold drawing by a thermomechanical process. In prestressed systems, the pre-tensioning obtained at first decreases over time, in particular due to the relaxation of the tensioned steel over time. For this reason, the low relaxation of the prestressed concrete strand is one of the most important criteria considered in such applications.



  • Product Properties

    ASTM A416/A416M Standard Referance Table

    Diameter

    Tensile Strength

    Cross Sectional Area

    Unit Weight

    Minimum Breaking Load

    Minimum
    Load at 1.0% Extension

    (mm)

    (in)

    (MPa)

     (ksi)

    (mm²)

    (in²)

    (g/m)

    (lb/1000 ft)

    kN

    lbf

    kN

    lbf

    9.53

    3/8”

    1725

    250

    52

    0.080

    405

    272

    89

    20000

    80.1

    18000

    1860

    270

    55

    0.085

    430

    290

    102

    23000

    92.1

    20700

    12.7

    1/2”

    1725

    250

    92.9

    0.144

    730

    490

    160

    36000

    144.1

    32400

    1860

    270

    98.7

    0.153

    780

    520

    184

    41300

    165.3

    37170

    15.2

    0.6”

    1725

    250

    139

    0.216

    1090

    737

    240

    54000

    216.2

    48600

    1860

    270

    140

    0.217

    1100

    740

    261

    58600

    234.6

    52740

    15.7 0.62" 1860 270 150 0.231 1200 780 279 62800 251.4 56520

    Maximum Relaxation After 1000h Test: 70% Fmax : 2.5% - 80% Fmax : 3.5%
    Total Elongation: Minimum 3.5%

    In addition to ASTM A416/A416M standard, bundle production in accordance with EN 10138-3 and BS 5896 standards can be produced. According to the standards of other countries, production can be carried out according to customer demand. See ASTM A416 / A416M, EN 10138-3 and BS 5896 standard tables in the documentation section.

    Weight

    Outer Diameter (D)

    Inner Diameter (d)

    Length (L)

    (kg)

    (mm)

    (mm)

    (mm)

    2500 - 4000

    1310 - 1700

    800

    750

    Packaging is carried out with 8 steel straps and special packaging material against corrosion. The package sizes shown above are standard sizes and can be packed in different sizes according to customer specific requirements.

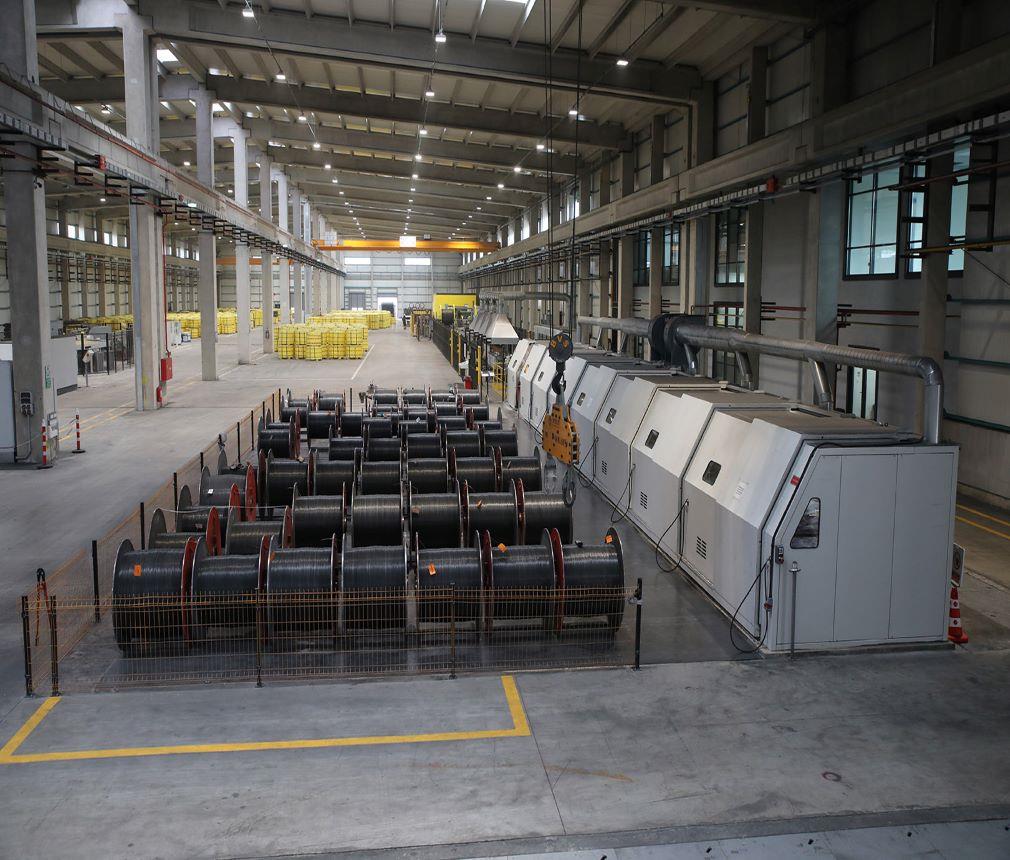

  • Photo Gallery
